Define the mold and plastic part

Categorize your mold components to allow the solver to identify them. You will then define their materials.

You will categorize the mold components into two mold groups, one for the mold cavity and one for the mold core. This allows you to view the results of each mold group separately.

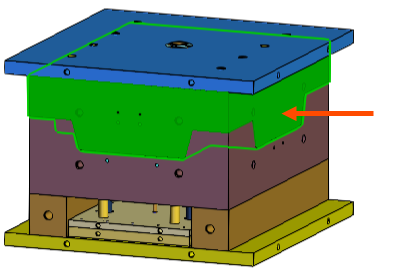

In the display window, select the mold cavity.
In the Mold Group 1 card, click add to assign the cavity as a part of the mold group 1.
Click expand to view the list of added components for verification. If necessary, you can click remove to remove a categorized component from the mold group.
In the Mold Group 1 card, click hide to hide the categorized component to verify that your components are correctly categorized.
Click Mold Group to create an additional mold group.

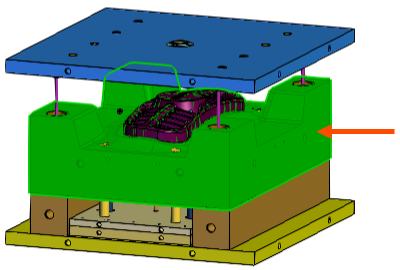

In the display window, select the mold core.
In the Mold Group 2 card, click add to assign the core as a part of mold group 2.
Click hide to hide the categorized component.

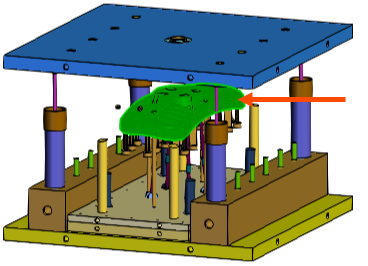

In the display window, select the ATV grill plastic part.
In the Plastic Part card, click add to assign the component as a plastic part.
Click hide to hide the categorized components.

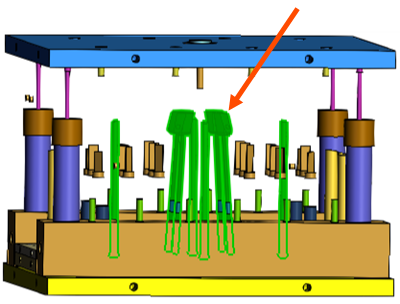

In the display window, select the ejector pins and lifters.
In the Mold Group 2 card, click add to assign the ejector pins and lifters as a part of mold group 2.
Notice that 13 elements are assigned to Mold Group 2.
In each Mold Group card, expand the Select Material list and select P20 Mold Steel to define the mold material.
In the Plastic Part card, expand the Select Material list and select Acrylic (PMMA) to define the plastic part material.
