Define the mold

Categorize your mold components to allow the solver to identify them. You will then define their materials.

You will categorize the mold components into two mold groups, one for the mold cavity and one for the mold core. This allows you to view the results of each mold group separately.

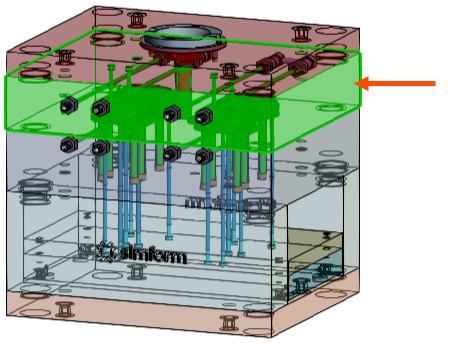

In the display window, select the mold cavity.
In the Mold Group 1 card, click add to assign the cavity as a part of mold group 1.
Click expand to view the list of added components for verification. If necessary, you can click remove to remove a categorized component from the mold group.
In the Mold Group 1 card, click hide to hide the categorized component to verify that your components are correctly categorized.

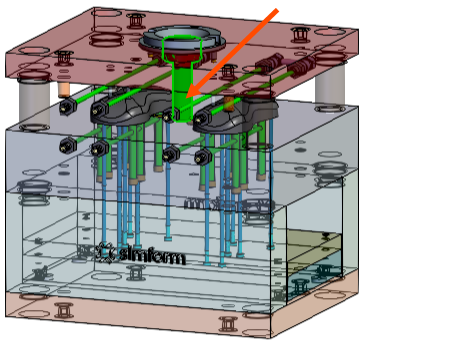

Repeat steps 2 and 3 to select the sprue bushing and add it as a part of Mold Group 1.
Click Mold Group to create an additional mold group.

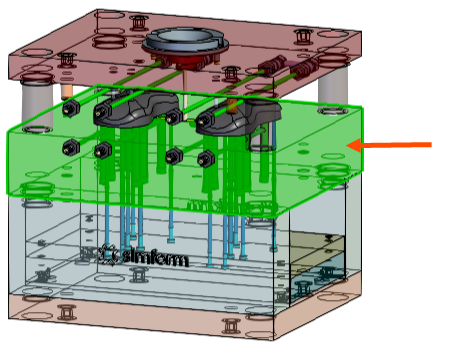

In the display window, select the mold core.
In the Mold Group 2 card, click add to assign the core as a part of the mold group 2.
Click hide to hide the categorized component.

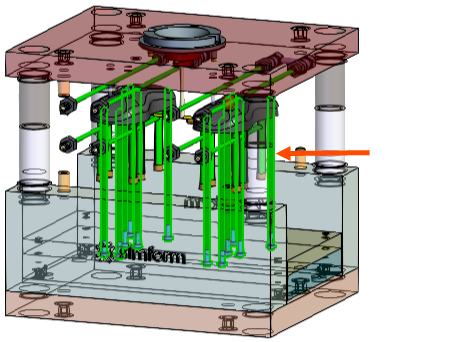

Repeat steps 6 and 7 to select the ejector pins and add them as a part of the Mold Group 2.

You must categorize all components in contact with the plastic part into one of the mold groups to ensure accurate temperature results. Excluding them from the analysis creates additional sources of cooling that distorts the temperature results and the cooling time estimation.
In each Mold Group card, expand the Select Material list and select P20 Mold Steel to define the mold material.
